SSI-6-BN

Finishing/Roughing

Product Overview:

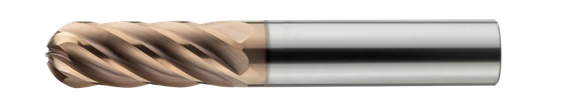

The latest addition to our popular SSI series is the SSI-6-BN (Ball Nose). The SSI-6-BN can provide higher feed rates while also providing a tool that is freer cutting. The SSI-6-BN was designed specifically for finishing and high efficiency machining in titanium, stainless steel, and other ferrous alloy metals. With its proven coating, advanced substrate, and field-tested geometry, the SSI-6-BN will provide outstanding tool life and metal removal rates for our customers who require 6-flute end mills for their milling applications. (Available with chip breakers)

Product Characteristics:

  • Flute Count (NOF): 6
  • UnEqual Index
  • Constant Helix
  • Center Cutting
  • RH-C / RH-H
  • Continuous Cutting Edge

Product Tolerances:

  • Shank Diameter (DCON): h5
  • Cutting Diameter (DC): -0.001"/-0.002"
  • Corner Radius (RE): +0.001"/-0.001"

Operations

Roughing
3D Contouring
Finishing
LIGHT PERIPHERAL (LP) FINISHING (F)
AE 5%DC <AE≤ 25% DC ≤ 5%DC
LIGHT PERIPHERAL (LP) FINISHING (F)
AP 2.0 x DC APMX

Speeds and Feeds

Coatings

Speed & Feed Calc

Advanced Search

Dimensions are in inches

Advanced Search

Part Number Dia (DC) Shank (DCON) LOC (APMX) OAL (OAL/LF) LBS (LU) Radius (RE) Neck DIA (DN) Number of Flutes Coating EDP Number List Price In Stock
SSIBNST60250C35 0.25 0.25 0.375 2 - - - 6 - 55881-35-D $98.28 22
SSIBNSTL60250C35 0.25 0.25 0.5 2.5 - - - 6 - 55882-35-D $115.18 26
SSIBN60250C35 0.25 0.25 0.75 2.5 - - - 6 - 55879-35-D $116.01 24
SSIBNM60250C35 0.25 0.25 1.25 3 - - - 6 - 55880-35-D $119.66 20
SSIBNST60312C35 0.3125 0.3125 0.4375 2.5 - - - 6 - 55885-35-D $119.96 22
SSIBNSTL60312C35 0.3125 0.3125 0.625 2.5 - - - 6 - 55886-35-D $128.53 24
SSIBN60312C35 0.3125 0.3125 0.8125 2.5 - - - 6 - 55883-35-D $133.66 25
SSIBNM60312C35 0.3125 0.3125 1.25 3 - - - 6 - 55884-35-D $149.05 24
SSIBNST60375C35 0.375 0.375 0.5 2.5 - - - 6 - 55894-35-D $135.72 5
SSIBNRN60375C35 0.375 0.375 0.5 4 - - - 6 - 55890-35-D $172.21 8
SSIBNRNM60375C35 0.375 0.375 0.5 4 - - - 6 - 55892-35-D $179.35 -
SSIBNRNL60375C35 0.375 0.375 0.5 6 - - - 6 - 55891-35-D $215.74 -
SSIBNRNX60375C35 0.375 0.375 0.5 6 - - - 6 - 55893-35-D $222.86 -
SSIBNSTL60375C35 0.375 0.375 0.75 2.5 - - - 6 - 55895-35-D $143.53 17
SSIBN60375C35 0.375 0.375 1 2.5 - - - 6 - 55887-35-D $149.39 12
SSIBNM60375C35 0.375 0.375 1.25 3 - - - 6 - 55889-35-D $161.22 25
SSIBNL60375C35 0.375 0.375 1.5 4 - - - 6 - 55888-35-D $184.09 15
SSIBNX60375C35 0.375 0.375 2 4 - - - 6 - 55896-35-D $189.86 25
SSIBNM60500C35 0.5 0.5 0.25 4 - - - 6 - 55899-35-D $326.17 24
SSIBNST60500C35 0.5 0.5 0.625 3 - - - 6 - 55904-35-D $248.18 22
SSIBNRN60500C35 0.5 0.5 0.625 4 - - - 6 - 55900-35-D $291.76 22
SSIBNRNM60500C35 0.5 0.5 0.625 4 - - - 6 - 55902-35-D $300.11 -
SSIBNRNL60500C35 0.5 0.5 0.625 6 - - - 6 - 55901-35-D $354.87 -
SSIBNRNX60500C35 0.5 0.5 0.625 6 - - - 6 - 55903-35-D $359.05 -
SSIBN60500C35 0.5 0.5 0.75 3 - - - 6 - 55897-35-D $287.62 13
SSIBNSTL60500C35 0.5 0.5 1 3 - - - 6 - 55905-35-D $259.28 44
SSIBNL60500C35 0.5 0.5 2 4 - - - 6 - 55898-35-D $347.26 25
SSIBNX60500C35 0.5 0.5 3 5 - - - 6 - 55906-35-D $388.91 22
SSIBN60625C35 0.625 0.625 0.375 2.5 - - - 6 - 55907-35-D $494.89 19
SSIBNSTL60625C35 0.625 0.625 0.75 2.5 - - - 6 - 55915-35-D $466.67 10
SSIBNST60625C35 0.625 0.625 0.75 3 - - - 6 - 55914-35-D $411.18 9
SSIBNRN60625C35 0.625 0.625 0.75 4 - - - 6 - 55910-35-D $474.03 -
SSIBNRNL60625C35 0.625 0.625 0.75 6 - - - 6 - 55911-35-D $578.61 -
SSIBNRNM60625C35 0.625 0.625 0.75 6 - - - 6 - 55912-35-D $566.43 -
SSIBNRNX60625C35 0.625 0.625 0.75 6 - - - 6 - 55913-35-D $584.70 -
SSIBNL60625C35 0.625 0.625 1.5 5 - - - 6 - 55908-35-D $598.97 17
SSIBNM60625C35 0.625 0.625 2 4 - - - 6 - 55909-35-D $526.67 10
