Products > Aluminum & Non-Ferrous Alloys Roughing/Finishing > Triple Threat

Triple Threat

Aluminum & Non-Ferrous Alloys Roughing/Finishing

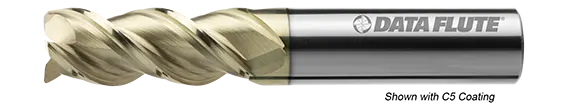

Triple Threat 3-flute Carbide End Mill

Product Overview:

The Triple Threat™ tool is a multi-patented three flute high performance carbide end mill designed to finish and rough in aluminum and non-ferrous metals. The high shear, 45 degree helix and improved inner-flute geometries enhanced chip evacuation and permit increased chip loads as well as aggressive feed rates.

Product Characteristics:

  • Flute Count (NOF): 3
  • Equal Index
  • Constant Helix
  • Center Cutting
  • RH-C / RH-H
  • Continuous Cutting Edge

Product Tolerances:

  • Shank Diameter (DCON): h5
  • Cutting Diameter (DC): -0.0001"/-0.0004"
  • Corner Radius (RE): +0.001"/-0.001"

Operations

Roughing
Finishing
HEAVY PERIPHERAL (HP) PERIPHERAL (P) LIGHT PERIPHERAL (LP) FINISHING (F)
AE 40%DC <AE≤ 80% DC 25%DC <AE≤ 40% DC 5%DC <AE≤ 25% DC ≤ 5%DC
HEAVY PERIPHERAL (HP) PERIPHERAL (P) LIGHT PERIPHERAL (LP) FINISHING (F)
AP 0.5 to 1.0 x DC 1.0 to 1.5 x DC 2.0 x DC APMX

Speeds and Feeds

Coatings

Speed & Feed Calc

Advanced Search

Dimensions are in inches

Advanced Search

Part Number Dia (DC) Shank (DCON) LOC (APMX) OAL (OAL/LF) LBS (LU) Radius (RE) Neck DIA (DN) Number of Flutes Coating EDP Number List Price In Stock
TTST30250-000 0.25 0.25 0.375 2 - 0.000 - 3 UC 36764-00-D $69.56 24
TTST30250-000C5 0.25 0.25 0.375 2 - 0.000 - 3 C5 36764-86-D $73.41 4
TTST30250-020 0.25 0.25 0.375 2 - 0.020 - 3 UC 36950-00-D $77.91 7
TTST30250-020C5 0.25 0.25 0.375 2 - 0.020 - 3 C5 36950-86-D $81.79 4
TTRN30250-000 0.25 0.25 0.375 2.5 1.125 0.000 - 3 UC 36768-00-D $76.72 5
TTRN30250-000C5 0.25 0.25 0.375 2.5 1.125 0.000 - 3 C5 36768-86-D $80.63 2
TTRN30250-020 0.25 0.25 0.375 2.5 1.125 0.020 - 3 UC 36952-00-D $85.58 18
TTRN30250-020C5 0.25 0.25 0.375 2.5 1.125 0.020 - 3 C5 36952-86-D $89.42 10
TTRNM30250-000 0.25 0.25 0.375 4 2.125 0.000 - 3 UC 36770-00-D $89.76 14
TTRNM30250-000C5 0.25 0.25 0.375 4 2.125 0.000 - 3 C5 36770-86-D $93.60 4
TTRNM30250-020 0.25 0.25 0.375 4 2.125 0.020 - 3 UC 36953-00-D $98.50 13
TTRNM30250-020C5 0.25 0.25 0.375 4 2.125 0.020 - 3 C5 36953-86-D $102.44 1
TT30250-000 0.25 0.25 0.75 2.5 - 0.000 - 3 UC 36766-00-D $79.33 20
TT30250-000C5 0.25 0.25 0.75 2.5 - 0.000 - 3 C5 36766-86-D $83.20 17
TT30250-020 0.25 0.25 0.75 2.5 - 0.020 - 3 UC 36951-00-D $93.82 19
TT30250-020C5 0.25 0.25 0.75 2.5 - 0.020 - 3 C5 36951-86-D $97.66 20
TTRN30312-000 0.3125 0.3125 0.4375 2.5 1.125 0.000 - 3 UC 36776-00-D $89.29 18
TTRN30312-000C5 0.3125 0.3125 0.4375 2.5 1.125 0.000 - 3 C5 36776-86-D $93.93 12
TTRN30312-020 0.3125 0.3125 0.4375 2.5 1.125 0.020 - 3 UC 36956-00-D $89.29 10
TTRN30312-020C5 0.3125 0.3125 0.4375 2.5 1.125 0.020 - 3 C5 36956-86-D $93.93 10
TTST30312-000 0.3125 0.3125 0.4375 2.5 - 0.000 - 3 UC 36772-00-D $82.39 14
TTST30312-000C5 0.3125 0.3125 0.4375 2.5 - 0.000 - 3 C5 36772-86-D $87.01 3
TTST30312-020 0.3125 0.3125 0.4375 2.5 - 0.020 - 3 UC 36954-00-D $95.05 14
TTST30312-020C5 0.3125 0.3125 0.4375 2.5 - 0.020 - 3 C5 36954-86-D $99.69 2
TTRNM30312-000 0.3125 0.3125 0.4375 4 2.125 0.000 - 3 UC 36778-00-D $111.91 13
TTRNM30312-000C5 0.3125 0.3125 0.4375 4 2.125 0.000 - 3 C5 36778-86-D $116.55 4
TTRNM30312-020 0.3125 0.3125 0.4375 4 2.125 0.020 - 3 UC 36957-00-D $124.57 1
TTRNM30312-020C5 0.3125 0.3125 0.4375 4 2.125 0.020 - 3 C5 36957-86-D $129.18 3
TT30312-000 0.3125 0.3125 0.8125 2.5 - 0.000 - 3 UC 36774-00-D $96.22 13
TT30312-000C5 0.3125 0.3125 0.8125 2.5 - 0.000 - 3 C5 36774-86-D $101.49 9
TT30312-020 0.3125 0.3125 0.8125 2.5 - 0.020 - 3 UC 36955-00-D $103.40 10
TT30312-020C5 0.3125 0.3125 0.8125 2.5 - 0.020 - 3 C5 36955-86-D $108.05 10
TTRN30375-000 0.375 0.375 0.5 2.5 1.125 0.000 - 3 UC 36789-00-D $98.09 19
TTRN30375-000C5 0.375 0.375 0.5 2.5 1.125 0.000 - 3 C5 36789-86-D $103.36 8
TTRN30375-020 0.375 0.375 0.5 2.5 1.125 0.020 - 3 UC 36960-00-D $102.82 13
TTRN30375-020C5 0.375 0.375 0.5 2.5 1.125 0.020 - 3 C5 36960-86-D $108.10 3
TTST30375-000 0.375 0.375 0.5 2.5 - 0.000 - 3 UC 36780-00-D $91.86 8
TTST30375-000C5 0.375 0.375 0.5 2.5 - 0.000 - 3 C5 36780-86-D $97.14 7
TTST30375-020 0.375 0.375 0.5 2.5 - 0.020 - 3 UC 36958-00-D $96.64 25
TTST30375-020C5 0.375 0.375 0.5 2.5 - 0.020 - 3 C5 36958-86-D $101.91 8
TTRNM30375-000 0.375 0.375 0.5 4 2.125 0.000 - 3 UC 36792-00-D $127.67 10
TTRNM30375-000C5 0.375 0.375 0.5 4 2.125 0.000 - 3 C5 36792-86-D $132.95 6
TTRNM30375-020 0.375 0.375 0.5 4 2.125 0.020 - 3 UC 36961-00-D $132.40 16
TTRNM30375-020C5 0.375 0.375 0.5 4 2.125 0.020 - 3 C5 36961-86-D $137.69 2
TT30375-000 0.375 0.375 1 2.5 - 0.000 - 3 UC 36786-00-D $98.05 25
TT30375-000C5 0.375 0.375 1 2.5 - 0.000 - 3 C5 36786-86-D $102.66 11
TT30375-020 0.375 0.375 1 2.5 - 0.020 - 3 UC 36959-00-D $114.32 17
TT30375-020C5 0.375 0.375 1 2.5 - 0.020 - 3 C5 36959-86-D $119.64 5
TTRN30500-000 0.5 0.5 0.625 3 1.375 0.000 - 3 UC 36801-00-D $140.24 -
TTRN30500-000C5 0.5 0.5 0.625 3 1.375 0.000 - 3 C5 36801-86-D $146.57 2
TTRN30500-030 0.5 0.5 0.625 3 1.375 0.030 - 3 UC 36803-00-D $153.45 21
TTRN30500-030C5 0.5 0.5 0.625 3 1.375 0.030 - 3 C5 36803-86-D $159.75 4
TTRN30500-060 0.5 0.5 0.625 3 1.375 0.060 - 3 UC 36805-00-D $153.31 10
TTRN30500-060C5 0.5 0.5 0.625 3 1.375 0.060 - 3 C5 36805-86-D $159.59 2
TTST30500-000 0.5 0.5 0.625 3 - 0.000 - 3 UC 36795-00-D $132.50 21
TTST30500-000C5 0.5 0.5 0.625 3 - 0.000 - 3 C5 36795-86-D $138.82 10
TTST30500-030 0.5 0.5 0.625 3 - 0.030 - 3 UC 36796-00-D $145.62 18
TTST30500-030C5 0.5 0.5 0.625 3 - 0.030 - 3 C5 36796-86-D $151.93 4
TTST30500-060 0.5 0.5 0.625 3 - 0.060 - 3 UC 36797-00-D $145.48 5
TTST30500-060C5 0.5 0.5 0.625 3 - 0.060 - 3 C5 36797-86-D $151.77 4
TTRNM30500-000 0.5 0.5 0.625 4 2.125 0.000 - 3 UC 36807-00-D $168.91 11
TTRNM30500-000C5 0.5 0.5 0.625 4 2.125 0.000 - 3 C5 36807-86-D $175.23 8
TTRNM30500-030 0.5 0.5 0.625 4 2.125 0.030 - 3 UC 36809-00-D $182.06 5
TTRNM30500-030C5 0.5 0.5 0.625 4 2.125 0.030 - 3 C5 36809-86-D $188.38 6
TTRNM30500-060 0.5 0.5 0.625 4 2.125 0.060 - 3 UC 36811-00-D $181.90 3
TTRNM30500-060C5 0.5 0.5 0.625 4 2.125 0.060 - 3 C5 36811-86-D $188.18 5
TT30500-000 0.5 0.5 1.25 3 - 0.000 - 3 UC 36798-00-D $138.94 7
TT30500-000C5 0.5 0.5 1.25 3 - 0.000 - 3 C5 36798-86-D $145.23 19
TT30500-030 0.5 0.5 1.25 3 - 0.030 - 3 UC 36799-00-D $161.40 19
TT30500-030C5 0.5 0.5 1.25 3 - 0.030 - 3 C5 36799-86-D $167.69 8
TT30500-060 0.5 0.5 1.25 3 - 0.060 - 3 UC 36800-00-D $160.79 7
TT30500-060C5 0.5 0.5 1.25 3 - 0.060 - 3 C5 36800-86-D $167.11 3
TTST30625-000 0.625 0.625 0.75 3 - 0.000 - 3 UC 36813-00-D $208.61 25
TTST30625-000C5 0.625 0.625 0.75 3 - 0.000 - 3 C5 36813-86-D $219.02 6
TTST30625-030 0.625 0.625 0.75 3 - 0.030 - 3 UC 36814-00-D $234.48 5
TTST30625-030C5 0.625 0.625 0.75 3 - 0.030 - 3 C5 36814-86-D $244.89 5
TTST30625-060 0.625 0.625 0.75 3 - 0.060 - 3 UC 36815-00-D $233.80 8
TTST30625-060C5 0.625 0.625 0.75 3 - 0.060 - 3 C5 36815-86-D $244.19 5
TTRN30625-000 0.625 0.625 0.75 4 1.625 0.000 - 3 UC 36819-00-D $269.38 12
TTRN30625-000C5 0.625 0.625 0.75 4 1.625 0.000 - 3 C5 36819-86-D $279.76 3
TTRN30625-030 0.625 0.625 0.75 4 1.625 0.030 - 3 UC 36820-00-D $295.23 9
TTRN30625-030C5 0.625 0.625 0.75 4 1.625 0.030 - 3 C5 36820-86-D $305.60 2
TTRN30625-060 0.625 0.625 0.75 4 1.625 0.060 - 3 UC 36821-00-D $294.57 11
TTRN30625-060C5 0.625 0.625 0.75 4 1.625 0.060 - 3 C5 36821-86-D $304.91 4
TTRNM30625-000 0.625 0.625 0.75 6 2.375 0.000 - 3 UC 36822-00-D $382.87 11
TTRNM30625-000C5 0.625 0.625 0.75 6 2.375 0.000 - 3 C5 36822-86-D $393.21 3
TTRNM30625-030 0.625 0.625 0.75 6 2.375 0.030 - 3 UC 36823-00-D $408.74 14
TTRNM30625-030C5 0.625 0.625 0.75 6 2.375 0.030 - 3 C5 36823-86-D $419.11 -
TTRNM30625-060 0.625 0.625 0.75 6 2.375 0.060 - 3 UC 36824-00-D $408.04 4
TTRNM30625-060C5 0.625 0.625 0.75 6 2.375 0.060 - 3 C5 36824-86-D $418.43 1
TT30625-000 0.625 0.625 1.625 3.5 - 0.000 - 3 UC 36816-00-D $258.42 18
TT30625-000C5 0.625 0.625 1.625 3.5 - 0.000 - 3 C5 36816-86-D $268.82 3
TT30625-030 0.625 0.625 1.625 3.5 - 0.030 - 3 UC 36817-00-D $283.84 8
TT30625-030C5 0.625 0.625 1.625 3.5 - 0.030 - 3 C5 36817-86-D $294.22 10
TT30625-060 0.625 0.625 1.625 3.5 - 0.060 - 3 UC 36818-00-D $283.34 -
TT30625-060C5 0.625 0.625 1.625 3.5 - 0.060 - 3 C5 36818-86-D $293.74 1
TTST30750-000 0.75 0.75 1 3 - 0.000 - 3 UC 36825-00-D $295.57 9
TTST30750-000C5 0.75 0.75 1 3 - 0.000 - 3 C5 36825-86-D $308.97 11
TTST30750-030 0.75 0.75 1 3 - 0.030 - 3 UC 36826-00-D $309.50 23
TTST30750-030C5 0.75 0.75 1 3 - 0.030 - 3 C5 36826-86-D $322.90 6
TTST30750-060 0.75 0.75 1 3 - 0.060 - 3 UC 36827-00-D $309.08 -
TTST30750-060C5 0.75 0.75 1 3 - 0.060 - 3 C5 36827-86-D $322.49 12
TTRN30750-000 0.75 0.75 1 4 2 0.000 - 3 UC 36831-00-D $360.18 2
TTRN30750-000C5 0.75 0.75 1 4 2 0.000 - 3 C5 36831-86-D $373.53 1
TTRN30750-030 0.75 0.75 1 4 2 0.030 - 3 UC 36832-00-D $374.09 20
TTRN30750-030C5 0.75 0.75 1 4 2 0.030 - 3 C5 36832-86-D $387.50 4
TTRN30750-060 0.75 0.75 1 4 2 0.060 - 3 UC 36833-00-D $373.69 14
TTRN30750-060C5 0.75 0.75 1 4 2 0.060 - 3 C5 36833-86-D $387.11 6
TTRNM30750-000 0.75 0.75 1 6 2.625 0.000 - 3 UC 36834-00-D $457.85 18
TTRNM30750-000C5 0.75 0.75 1 6 2.625 0.000 - 3 C5 36834-86-D $471.25 4
TTRNM30750-030 0.75 0.75 1 6 2.625 0.030 - 3 UC 36835-00-D $471.76 1
TTRNM30750-030C5 0.75 0.75 1 6 2.625 0.030 - 3 C5 36835-86-D $485.16 4
TTRNM30750-060 0.75 0.75 1 6 2.625 0.060 - 3 UC 36836-00-D $471.41 4
TTRNM30750-060C5 0.75 0.75 1 6 2.625 0.060 - 3 C5 36836-86-D $484.78 -
TT30750-000 0.75 0.75 1.625 4 - 0.000 - 3 UC 36828-00-D $356.83 12
TT30750-000C5 0.75 0.75 1.625 4 - 0.000 - 3 C5 36828-86-D $370.19 14
TT30750-030 0.75 0.75 1.625 4 - 0.030 - 3 UC 36829-00-D $386.85 14
TT30750-030C5 0.75 0.75 1.625 4 - 0.030 - 3 C5 36829-86-D $400.23 4
TT30750-060 0.75 0.75 1.625 4 - 0.060 - 3 UC 36830-00-D $386.44 11
TT30750-060C5 0.75 0.75 1.625 4 - 0.060 - 3 C5 36830-86-D $399.84 5
TTST31000-000 1 1 1.25 4 - 0.000 - 3 UC 36837-00-D $675.20 2
TTST31000-000C5 1 1 1.25 4 - 0.000 - 3 C5 36837-86-D $693.36 2
TTST31000-030 1 1 1.25 4 - 0.030 - 3 UC 36838-00-D $708.21 6
TTST31000-030C5 1 1 1.25 4 - 0.030 - 3 C5 36838-86-D $726.39 2
TTST31000-060 1 1 1.25 4 - 0.060 - 3 UC 36839-00-D $707.13 8
TTST31000-060C5 1 1 1.25 4 - 0.060 - 3 C5 36839-86-D $725.33 5
TTRN31000-000 1 1 1.25 5 2.625 0.000 - 3 UC 36843-00-D $823.57 5
TTRN31000-000C5 1 1 1.25 5 2.625 0.000 - 3 C5 36843-86-D $841.79 5
TTRN31000-030 1 1 1.25 5 2.625 0.030 - 3 UC 36844-00-D $856.57 1
TTRN31000-030C5 1 1 1.25 5 2.625 0.030 - 3 C5 36844-86-D $874.80 1
TTRN31000-060 1 1 1.25 5 2.625 0.060 - 3 UC 36845-00-D $855.50 8
TTRN31000-060C5 1 1 1.25 5 2.625 0.060 - 3 C5 36845-86-D $873.72 6
TTRNM31000-000 1 1 1.25 7 3.625 0.000 - 3 UC 36846-00-D $1048.09 4
TTRNM31000-000C5 1 1 1.25 7 3.625 0.000 - 3 C5 36846-86-D $1084.52 1
TTRNM31000-030 1 1 1.25 7 3.625 0.030 - 3 UC 36847-00-D $1081.10 -
TTRNM31000-030C5 1 1 1.25 7 3.625 0.030 - 3 C5 36847-86-D $1117.53 3
TTRNM31000-060 1 1 1.25 7 3.625 0.060 - 3 UC 36848-00-D $1080.07 2
TTRNM31000-060C5 1 1 1.25 7 3.625 0.060 - 3 C5 36848-86-D $1116.52 1
TT31000-000 1 1 2 5 - 0.000 - 3 UC 36840-00-D $823.91 21
TT31000-000C5 1 1 2 5 - 0.000 - 3 C5 36840-86-D $842.13 6
TT31000-030 1 1 2 5 - 0.030 - 3 UC 36841-00-D $858.49 10
TT31000-030C5 1 1 2 5 - 0.030 - 3 C5 36841-86-D $876.73 6
TT31000-060 1 1 2 5 - 0.060 - 3 UC 36842-00-D $857.68 2
TT31000-060C5 1 1 2 5 - 0.060 - 3 C5 36842-86-D $875.84 2
